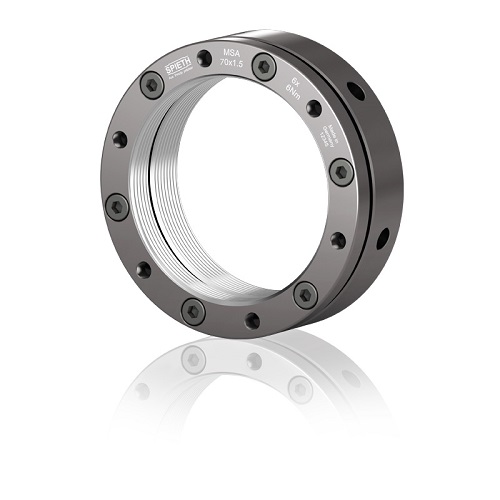

现货Spieth 调节螺母 MSA 45.1,5
  • 现货Spieth 调节螺母 MSA 45.1,5
  • 现货Spieth 调节螺母 MSA 45.1,5

现货Spieth 调节螺母 MSA 45.1,5

订单号:K-10204501 螺纹-φ :d1 5H M45 [-] 螺纹间距-φ:1,5 [mm] 轴向载荷 : 78 [kN] 精度: 7 [μm]

技术参数主要功能基本配置可选配置质量保证

订货号  :10204501

型号    :MSA 45x1.5

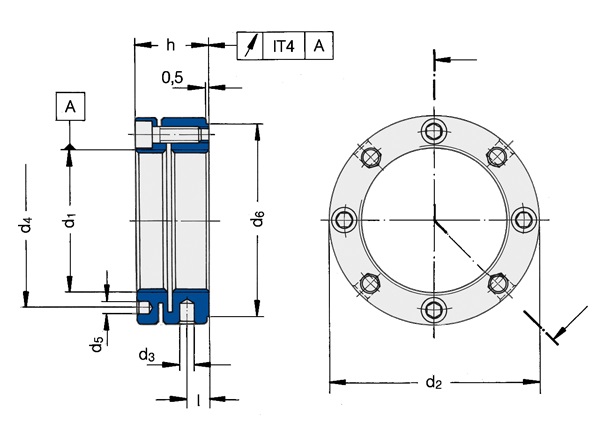

内径 :M45x1,5

外径d2mm:64

外径d6mm:59

高mm    :23

扭力Kn  :78


订货号          型号            内径d2外径mmd6外径mm高 mm扭力Kn
K-10202001MSA 20x1M20x135311731
K-10202501MSA 25x1.5M25x1,540361949
K-10203001MSA 30x1.5M30x1,545411956
K-10203501MSA 35x1.5M35x1,553482266
K-10204001MSA 40x1.5M40x1,558542268
K-10204501MSA 45x1.5M45x1,564592378
K-10205001MSA 50x1.5M50x1,569642485
K-10205501MSA 55x1.5M55x1,573692479
K-10206001MSA 60x1.5M60x1,578742481
K-10206501MSA 65x1.5M65x1,5    837924124
K-10207001MSA 70x1.5M70x1,5938827178
K-10207501MSA 75x1.5M75x1,5    989327183
K-10208001MSA 80x2M80x21039828196
K-10208501MSA 85x2M85x211210630228
K-10209001MSA 90x2M90x211711130230
K-10209501MSA 95x2M95x212211630232
K-10210001MSA 100x2M100x213012332271
K-10210501MSA 105x2M105x213512832274
K-10211001MSA 110x2M110x214013332280
K-10212001MSA 120x2M120x215514536408
K-10213001MSA 130x3M130x316515536405
K-10214001MSA 140x3M140x318017036476
K-10215001MSA 150x3M150x319018036489
K-10216001MSA 160x3M160x320519540552
K-10217001MSA 170x3M170x321520540560
K-10218001MSA 180x3M180x323022040648
K-10219001MSA 190x3M190x324023040656
K-10220001MSA 200x3M200x324523540578


Spieth 调节螺母 MSA 45x1.5 ,订货号:K-10204501

Spieth 调节螺母体 MSA 45x1.5

Spieth 夹紧螺钉 5xM4

径向孔

销扳手 DIN 1810 - B 58-62

用于面孔连接的轴向孔


如果有特殊应用要求,请联系我们!

质保期12个月
