Spieth 胀紧套 DSL系列大量现货型号-北京汉达森

DSL-厚-适用于轴配合h5/h6，带有集成的夹紧螺钉。随时可以安装的摩擦锁定的轴毂连接，可以快速和容易地组装。用于有h型公差区的轴。

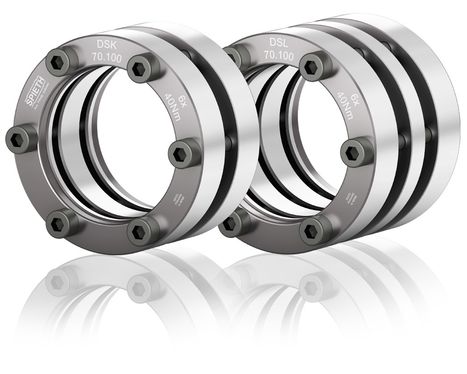

DSL DSK.jpg

Spieth胀紧套 DSL系列

订货号	型号	内径mm	外径mm	长mm	扭矩Nm
K-11101401	DSK 14.26	14	26	21	36
K-11201401	DSL 14.26	14	26	31	60
K-11101501	DSK 15.28	15	28	21	44
K-11201501	DSL 15.28	15	28	31	66
K-11101601	DSK 16.28	16	28	21	43
K-11101602	DSK 16.32	16	32	31	71
K-11201601	DSL 16.28	16	28	31	73
K-11201602	DSL 16.32	16	32	41	130
K-11101801	DSK 18.30	18	30	21	53
K-11101802	DSK 18.35	18	35	31	96
K-11201801	DSL 18.30	18	30	31	86
K-11201802	DSL 18.35	18	35	41	160
K-11102001	DSK 20.32	20	32	21	62
K-11102002	DSK 20.37	20	37	31	100
K-11102003	DSK 20.40	20	40	36	130
K-11202001	DSL 20.32	20	32	31	100
K-11202002	DSL 20.37	20	37	41	180
K-11202003	DSL 20.40	20	40	52	170
K-11102201	DSK 22.35	22	35	21	75
K-11102202	DSK 22.38	22	38	31	100
K-11102203	DSK 22.42	22	42	36	210
K-11202201	DSL 22.35	22	35	31	110
K-11202202	DSL 22.38	22	38	41	180
K-11202203	DSL 22.42	22	42	52	260
K-11102501	DSK 25.37	25	37	21	85
K-11102502	DSK 25.42	25	42	31	140
K-11102503	DSK 25.45	25	45	36	260
K-11202501	DSL 25.37	25	37	31	140
K-11202502	DSL 25.42	25	42	41	250
K-11202503	DSL 25.45	25	45	52	320
K-11102801	DSK 28.40	28	40	21	98
K-11102802	DSK 28.45	28	45	31	170
K-11102803	DSK 28.48	28	48	36	300
K-11202801	DSL 28.40	28	40	31	160
K-11202802	DSL 28.45	28	45	41	280
K-11202803	DSL 28.48	28	48	52	370
K-11103001	DSK 30.42	30	42	21	110
K-11103002	DSK 30.47	30	47	31	190
K-11103003	DSK 30.50	30	50	36	340
K-11103004	DSK 30.55	30	55	41	390
K-11203001	DSL 30.42	30	42	31	180
K-11203002	DSL 30.47	30	47	41	320
K-11203003	DSL 30.50	30	50	52	410
K-11203004	DSL 30.55	30	55	62	430
K-11103201	DSK 32.48	32	48	31	180
K-11103202	DSK 32.52	32	52	36	360
K-11103203	DSK 32.56	32	56	41	410
K-11203201	DSL 32.48	32	48	41	340
K-11203202	DSL 32.52	32	52	52	440
K-11203203	DSL 32.56	32	56	62	460
K-11103501	DSK 35.52	35	52	31	230
K-11103502	DSK 35.55	35	55	36	420
K-11103503	DSK 35.60	35	60	41	630
K-11203501	DSL 35.52	35	52	41	400
K-11203502	DSL 35.55	35	55	52	520
K-11203503	DSL 35.60	35	60	62	700
K-11104001	DSK 40.56	40	56	31	240
K-11104002	DSK 40.62	40	62	36	540
K-11104003	DSK 40.65	40	65	41	750
K-11104004	DSK 40.70	40	70	52	830
K-11204001	DSL 40.56	40	56	41	470
K-11204002	DSL 40.62	40	62	52	620
K-11204003	DSL 40.65	40	65	62	830
K-11204004	DSL 40.70	40	70	77	900
K-11104501	DSK 45.68	45	68	36	640
K-11104502	DSK 45.70	45	70	41	860
K-11104503	DSK 45.75	45	75	52	950
K-11204501	DSL 45.68	45	68	52	720
K-11204502	DSL 45.70	45	70	62	960
K-11204503	DSL 45.75	45	75	77	1100
K-11105001	DSK 50.72	50	72	36	750
K-11105002	DSK 50.75	50	75	41	1040
K-11105003	DSK 50.80	50	80	52	1850
K-11205001	DSL 50.72	50	72	52	850
K-11205002	DSL 50.75	50	75	62	1130
K-11205003	DSL 50.80	50	80	77	1980
K-11105501	DSK 55.80	55	80	41	1100
K-11105502	DSK 55.85	55	85	52	2070
K-11205501	DSL 55.80	55	80	62	1260
K-11205502	DSL 55.85	55	85	77	2240
K-11106001	DSK 60.85	60	85	41	1320
K-11106002	DSK 60.90	60	90	52	2370
K-11206001	DSL 60.85	60	85	62	1480
K-11206002	DSL 60.90	60	90	77	2600
K-11106501	DSK 65.90	65	90	41	1450
K-11106502	DSK 65.95	65	95	52	2640
K-11206501	DSL 65.90	65	90	62	1630
K-11206502	DSL 65.95	65	95	77	2900
K-11107001	DSK 70.100	70	100	52	2990
K-11207001	DSL 70.100	70	100	77	3210
K-11107501	DSK 75.105	75	105	52	3250
K-11207501	DSL 75.105	75	105	77	3560
K-11108001	DSK 80.110	80	110	52	3520
K-11208001	DSL 80.110	80	110	77	3870
K-11108501	DSK 85.120	85	120	57	3560
K-11208501	DSL 85.120	85	120	92	3900
K-11109001	DSK 90.120	90	120	52	4300
K-11209001	DSL 90.120	90	120	77	6850
K-11109501	DSK 95.125	95	125	52	4540
K-11209501	DSL 95.125	95	125	77	7390
K-11110001	DSK 100.130	100	130	52	4780
K-11210001	DSL 100.130	100	130	77	7780
K-11111001	DSK 110.140	110	140	52	6570
K-11211001	DSL 110.140	110	140	77	10690
K-11112001	DSK 120.150	120	150	52	7170
K-11212001	DSL 120.150	120	150	77	11670
K-11113001	DSK 130.160	130	160	52	7760
K-11213001	DSL 130.160	130	160	77	12640
K-11114001	DSK 140.170	140	170	52	8360
K-11214001	DSL 140.170	140	170	77	13610
K-11115001	DSK 150.180	150	180	52	8960
K-11215001	DSL 150.180	150	180	77	14580
K-11116001	DSK 160.190	160	190	52	11470
K-11216001	DSL 160.190	160	190	77	18670
K-11117001	DSK 170.200	170	200	52	12180
K-11217001	DSL 170.200	170	200	77	19830
K-11118001	DSK 180.210	180	210	52	12900
K-11218001	DSL 180.210	180	210	77	21000
K-11119001	DSK 190.230	190	230	62	16650
K-11219001	DSL 190.230	190	230	92	27110
K-11120001	DSK 200.240	200	240	62	17530
K-11220001	DSL 200.240	200	240	92	28540
K-11121001	DSK 210.250	210	250	62	18400
K-11221001	DSL 210.250	210	250	92	29960
K-11122001	DSK 220.260	220	260	62	19250
K-11222001	DSL 220.260	220	260	92	31390
K-11123001	DSK 230.270	230	270	62	20160
K-11223001	DSL 230.270	230	270	92	32800
K-11124001	DSK 240.280	240	280	62	21040
K-11224001	DSL 240.280	240	280	92	34250
K-11125001	DSK 250.300	250	300	72	27390
K-11225001	DSL 250.300	250	300	102	44580
K-11126001	DSK 260.310	260	310	72	28480
K-11226001	DSL 260.310	260	310	102	46370
K-11127001	DSK 270.320	270	320	72	29580
K-11227001	DSL 270.320	270	320	102	48150
K-11128001	DSK 280.330	280	330	72	30670
K-11228001	DSL 280.330	280	330	102	49900
K-11129001	DSK 290.340	290	340	72	31770
K-11229001	DSL 290.340	290	340	102	51700
K-11130001	DSK 300.350	300	350	72	32860
K-11230001	DSL 300.350	300	350	102	53500
