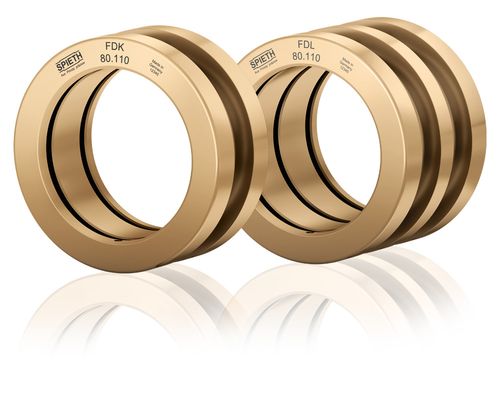

Spieth 导套FDK 系列
通过连接部件进行间隙调整,以实现轴的配合g5。精确的、可调整间隙的圆形导轨。价格低廉,可随时安装。滑动摩擦与尽可能小的导向游隙相结合。在组装过程中可以调整。连接部件易于制造。高阻尼。简单、快速的组装和拆卸。
订货号 | 型号 | 内径mm | 外径mm | 长mm | 轴向载荷N |
K-13102001 | FDK 20.37 | 20 | 37 | 30 | 1800 |
K-13202001 | FDL 20.37 | 20 | 37 | 46 | 3600 |
K-13102501 | FDK 25.42 | 25 | 42 | 30 | 2260 |
K-13202501 | FDL 25.42 | 25 | 42 | 46 | 4500 |
K-13103001 | FDK 30.47 | 30 | 47 | 30 | 2810 |
K-13203001 | FDL 30.47 | 30 | 47 | 46 | 5720 |
K-13103501 | FDK 35.55 | 35 | 55 | 42 | 5290 |
K-13203501 | FDL 35.55 | 35 | 55 | 62 | 9070 |
K-13104001 | FDK 40.62 | 40 | 62 | 42 | 6050 |
K-13204001 | FDL 40.62 | 40 | 62 | 62 | 10370 |
K-13104501 | FDK 45.68 | 45 | 68 | 42 | 6800 |
K-13204501 | FDL 45.68 | 45 | 68 | 62 | 11660 |
K-13105001 | FDK 50.72 | 50 | 72 | 42 | 7560 |
K-13205001 | FDL 50.72 | 50 | 72 | 62 | 12960 |
K-13105501 | FDK 55.80 | 55 | 80 | 42 | 8320 |
K-13205501 | FDL 55.80 | 55 | 80 | 68 | 16630 |
K-13106001 | FDK 60.85 | 60 | 85 | 42 | 9070 |
K-13206001 | FDL 60.85 | 60 | 85 | 68 | 18140 |
K-13106501 | FDK 65.90 | 65 | 90 | 42 | 9830 |
K-13206501 | FDL 65.90 | 65 | 90 | 68 | 19660 |
K-13107001 | FDK 70.100 | 70 | 100 | 48 | 12100 |
K-13207001 | FDL 70.100 | 70 | 100 | 78 | 25200 |
K-13107501 | FDK 75.105 | 75 | 105 | 48 | 12960 |
K-13207501 | FDL 75.105 | 75 | 105 | 78 | 27000 |
K-13108001 | FDK 80.110 | 80 | 110 | 48 | 13820 |
K-13208001 | FDL 80.110 | 80 | 110 | 78 | 28800 |
K-13108501 | FDK 85.120 | 85 | 120 | 60 | 20810 |
K-13208501 | FDL 85.120 | 85 | 120 | 92 | 36110 |
K-13109001 | FDK 90.125 | 90 | 125 | 60 | 22030 |
K-13209001 | FDL 90.125 | 90 | 125 | 92 | 38230 |
K-13109501 | FDK 95.130 | 95 | 130 | 60 | 23260 |
K-13209501 | FDL 95.130 | 95 | 130 | 92 | 40360 |
K-13110001 | FDK 100.140 | 100 | 140 | 66 | 25920 |
K-13210001 | FDL 100.140 | 100 | 140 | 102 | 47520 |
K-13111001 | FDK 110.150 | 110 | 150 | 66 | 28510 |
K-13211001 | FDL 110.150 | 110 | 150 | 102 | 52270 |
K-13112001 | FDK 120.165 | 120 | 165 | 72 | 34560 |
K-13212001 | FDL 120.165 | 120 | 165 | 114 | 58750 |
K-13113001 | FDK 130.180 | 130 | 180 | 78 | 41180 |
K-13213001 | FDL 130.180 | 130 | 180 | 124 | 71140 |
K-13114001 | FDK 140.190 | 140 | 190 | 78 | 44350 |
K-13214001 | FDL 140.190 | 140 | 190 | 124 | 80640 |
K-13115001 | FDK 150.200 | 150 | 200 | 78 | 47520 |
K-13215001 | FDL 150.200 | 150 | 200 | 124 | 86400 |
