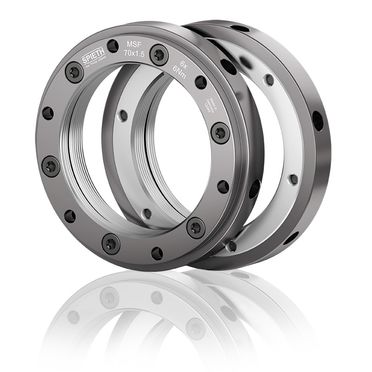

德国Spieth主要经营产品包含:Spieth 胀紧套、Spieth 锁紧螺母、Spieth 导套、 Spieth GLM 径向滑动轴承 、Spieth AMS夹紧螺母、 Spieth FLW导轨 等等Spieth锁紧螺母 MSF系列型号参数:
订货号 | 型号 | 内径 | d2外径mm | d6外径mm | 高mm | 扭力Kn |
K-10302501 | MSF 25x1.5 | M25x1,5 | 48 | 39 | 14 | 26 |
K-10303001 | MSF 30x1.5 | M30x1,5 | 53 | 44 | 15 | 40 |
K-10303501 | MSF 35x1.5 | M35x1,5 | 58 | 49 | 15 | 49 |
K-10304001 | MSF 40x1.5 | M40x1,5 | 63 | 54 | 15 | 57 |
K-10304501 | MSF 45x1.5 | M45x1,5 | 70 | 59 | 15 | 60 |
K-10305001 | MSF 50x1.5 | M50x1,5 | 75 | 64 | 16 | 80 |
K-10305501 | MSF 55x1.5 | M55x1,5 | 80 | 69 | 16 | 120 |
K-10305502 | MSF 55x2 | M55x2 | 80 | 69 | 16 | 116 |
K-10306001 | MSF 60x1.5 | M60x1,5 | 89 | 77 | 18 | 131 |
K-10306002 | MSF 60x2 | M60x2 | 89 | 77 | 18 | 126 |
K-10306501 | MSF 65x1.5 | M65x1,5 | 94 | 82 | 18 | 144 |
K-10306502 | MSF 65x2 | M65x2 | 94 | 82 | 18 | 139 |
K-10307001 | MSF 70x1.5 | M70x1,5 | 99 | 87 | 18 | 155 |
K-10307002 | MSF 70x2 | M70x2 | 99 | 87 | 18 | 150 |
K-10307501 | MSF 75x1.5 | M75x1,5 | 106 | 94 | 20 | 178 |
K-10307502 | MSF 75x2 | M75x2 | 106 | 94 | 20 | 172 |
K-10308001 | MSF 80x2 | M80x2 | 111 | 99 | 20 | 186 |
K-10309001 | MSF 90x2 | M90x2 | 121 | 109 | 20 | 214 |
K-10310001 | MSF 100x2 | M100x2 | 131 | 119 | 20 | 24 |
